Auto-Titration & KF Analysis

Description

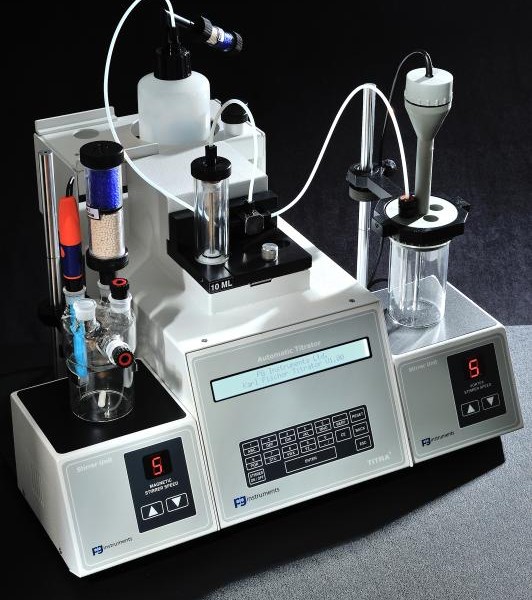

The 12 series of Automated Titration performs the fundamental task of titration where the concentration of a chemical substance is determined by reacting it with a measured amount of another chemical. The Auto Titrator performs this analysis using a motor driven dispenser, stirred reaction vessel and electrodes which sense the completion of the reaction by measuring the potential difference between two electrodes.The 12 series of Automatic Titration systems offers the following modes of analysis:INCREMENTAL – This method operates with a user selectable fixed dose and fixed intervals until the end point is detected or volume limit is reached.EQUILIBRIUM – This is the Universal and Dynamic Titration. In this titration the dose and time automatically are tuned to the titration trend with evaluation of the end point.pH CUT OFF/STAT – in pH cut off mode the end point is determined in a pre-selectable pH window. In pH-STAT mode the pH value is maintained until the pre-selected time interval is reached.

THE FOLLOWING TITRATIONS ARE AVAILABLE WITH THE 12 – 14 SERIES OF AUTOMATED TITRATORS:

Acid – Base or Aqueous Titrations	Redox Titrations	Complexometric titration of EDTA Titrations
Blank Titration	Silver Assay Titration (As per BS2113:2002)	Nonaqueous Titrations
Voltametric Titration/Karl Fischer	Back Titration	Argentometric or Precipitation Titration

SPECIFICATIONS
Principle	Volume determination by equivilent point, end point or pH STAT
Control	Microprocessor based
mV Range	=/- 3200mV
Accuracy	+/- 0.1mV (+/- 0.0016pH)
Amplifier Input Impedance	>10¹² Ohms
Burette Resolution	1/5000 for 5ml, 1/10000 for 10ml, 1/5000 for 25ml
Filing Time	<20 Seconds
Keyboard	Alphanumeric splash waterproof polyester soft keys.
Titration Head	Manual Stand with swivelling arm
Stirrer System	Microcontroller based variable speed, high torque vortex stirrer with digital indicator. (Magnetic Stirrer Optional)
Sensors	Electrodes for Potentiometric titration (pH, Ion, Redox, Argentometric) Any Combination Electrode Differential Electrode System comprising sensing (indicator) Electrode with various adaptors such as BNC connector, and Reference Electrode with 4mm ‘Banana Connector’ Electrode for Karl Fischer with BNC/TNC Connectors Temperature Sensor.
Calibration	3-point Calibration with entered buffer values and standardisation with pH 7 Buffer
End Point Detection	Potentiometric Voltametric Thermometric & Photometric
Cut-off Criteria	Volume End Point mV/pH
Analysis Methods	Titrations Acid -Base Non-aqueous Redox Precipitation Complexometric Back Titration Karl Fischer
Results & Concentration Units	Molarity % Assay (wt) % Volume (ml) ppm, mg/l, mg/g, g/l, meq/l, mol/kg, TAN and TBN for Oil Samples
Method Storage	50 methods with Parameters
Titrant Molarity Storage	20 Values
Report Format	Method Parameters Titration Analysis Report Titration Analysis Condensed Report Titration Data Table Titration Graphic Report Micro litre versus mV Micro Litre versus First and/or Second Derivative Micro Litre versus Time Auto Evaluation Report Statistics report End Point Titration report Calibration report
Input/Output peripheral Interface	Parallel Port for Printer Serial Port QTY TWO for Balance and PC
Power	. 110 – 230v 50/60Hz
Environmental Conditions for Operation	Laboratory Use Temperature Ambient to 45 degrees Centigrade Humidity 5 – 90% Non Condensing
